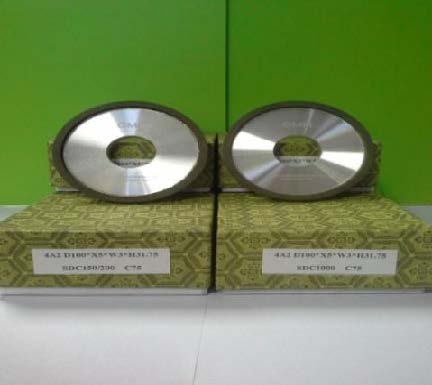

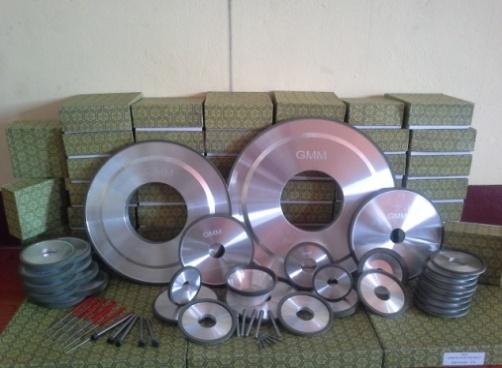

DIAMOND / CBN

NOZZLE DIE

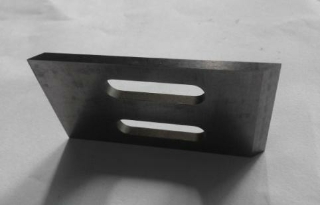

CUTTING TOOL

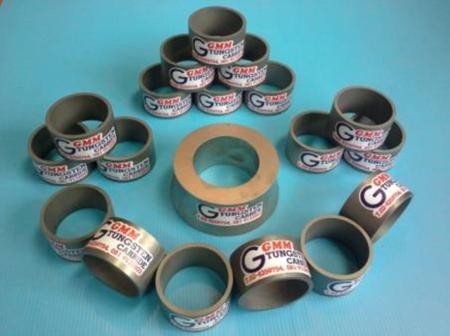

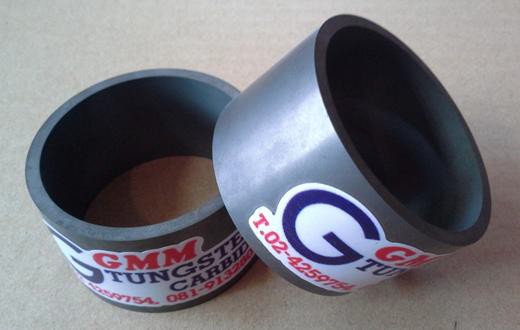

DRAWING DIES

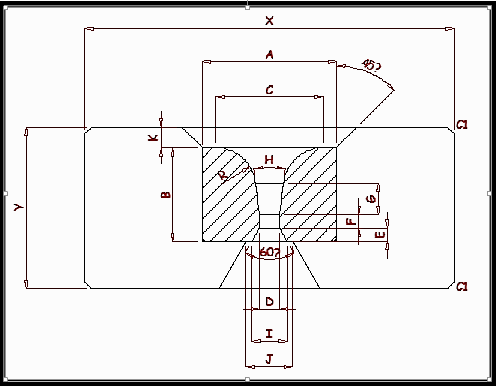

Drawing Dies NIB CASE Dimension Type D A B X Y C E F G H R I J K +1.0 -1.0 +1.0 -1.0 +0.1 -0.5 +0.1 -0.8 +1.0 -1.0 +1.0 -1.0 +0.5 -0.5 +1.0 -1.0 +2.0 -2.0 +1.0 -1.0 +1.0 -1.0 +1.0 -1.0 +1.0 -1.0 W103 0.2 TO 2.5 12 8 30 15 9 1 0.5D 0.6-1.0D 12 4-6 1.15E+D I+2 2 W104 2.5 TO 4.0 15 10 42 20 11 1.5 0.5D 0.8-1.0D 14 4-6 1.15E+D I+2 3 W105 4 TO 6 20 14 55 24 15 2 0.5D 0.8-1.0D 14 5-7 1.15E+D I+2 3 W106 6 TO 8 25 18 60 28 19 2.5 0.5D 0.8-1.2D 18 6-8 1.15E+D I+3 4 W107 8 TO 10 30 22 70 35 23 3 0.5D 0.9-1.0D 18 6-10 1.15E+D I+3 4 W108 10 TO 13 35 25 85 40 26 3.2 0.4D 0.8-0.9D 18 7-11 1.15E+D I+3 5 W109 13 TO 16 40 27 100 45 30 4 0.3D 0.8-0.9D 18 7-11 1.15E+D I+3 5 W110 16 TO 20 50 30 125 50 38 4.5 0.3D 0.6-0.8D 20 9-13 1.15E+D I+3 5 W111 20 TO 26 60 35 145 60 45 5.5 0.3D 0.5-0.7D 20 12-13 1.15E+D I+3 7 W112 26 TO 32 70 40 175 70 52 5.5 0.3D 0.5-0.6D 20 13-14 1.15E+D I+4 7 W113 32 TO 38 80 45 195 80 60 6 0.3D 20 20 13-14 1.15E+D I+4 7 W114 38 TO 46 90 50 215 90 67 10 10 20 20 11-12 1.15E+D I+4 10 W115 46 TO 54 100 50 230 90 75 10 10 20 20 11-12 1.15E+D I+4 10 W116 54 TO 65 110 50 240 90 82 10 10 20 20 11-12 1.15E+D I+4 10 W117 65 TO 74 120 50 260 90 90 10 10 20 20 11-12 1.15E+D I+4 10 W118 74 TO 84 130 50 280 90 97 10 10 20 20 11-12 1.15E+D I+4 10 W119 84 TO 94 140 50 300 100 105 10 10 20 20 11-12 1.15E+D I+4 10 W120 94 TO 104 150 50 300 100 112 10 10 20 20 11-12 1.15E+D I+4 10
